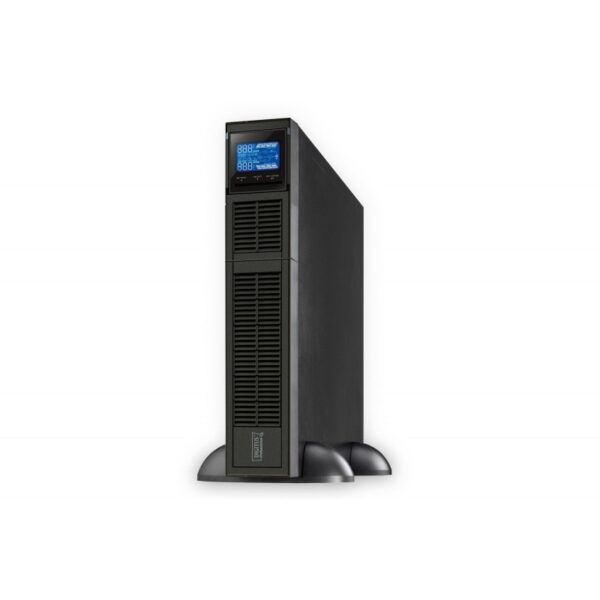

Capacity: 1500VA/1350W
– Nominal- & output voltage: 200/208/220/230/240 VAC
– Voltage range: 110-300 VAC ± 5%
– Frequency range: 40 Hz ~ 70 Hz
– Power factor: ≥ 0.99 @ input voltage; ≥ 0.90 @ output voltage
– True double-conversion technology
– AC voltage regulation (battery mode): ± 1%
– Frequency range (synchronized range): 47 ~ 53 Hz or 57 ~ 63 Hz
– Frequency range (battery mode): 50 Hz ± 0,5% or 60 Hz ± 0,5%
– Current crest ratio: 5:1 (max.)
– Harmonic distortion (line mode): ≤ 2% THD (linear load); ≤ 4% THD (non-linear load)
– Transfer time (line mode to battery mode): Zero
– Transfer time (inverter to bypass): 4 ms (typical)
– Wave form (battery mode): Pure sinewave
– Efficiency: 88% (AC mode); 86% (battery mode); 95% (ECO mode)
– Battery: 12V/9Ah x3
– Changing of battery possible while operating (“hot swap”)
– Typical recharge time: 4 hours to recover 90% of capacity
– With overload-, discharge- and overcharge protection
– Charging current: 1.0 A
– Charging voltage: 41.1 VDC ± 1%
– LCD display (Load level, battery level, AC mode, battery mode, bypass mode, fault locator)
– Alarm sounds: Battery mode (sounding every 4 sec.), low battery (sounding every second),
overload (sounding twice every sec.), fault (continuously sounding)
– EPO switch (Emergency Power Off)
– 19“ mountable; 19“ mounting brackets included in delivery content
– 8x IEC C13; 4x programmable
– Dimensions (HxWxD): 88 (2U) x 438 x 480 mm
– Net weight: 17.6 kg
– Humidity: 20-90% RH @ 0 °C up to +40 °C (non-condensing)
– Noise level: under 50 dBA @1 meter
– Smart RS-232/USB supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix and Mac
|
